***Define Initial Population***

The initial population in the final version of Alphabet Soup may likely contain one of each keyboard character available. For now, for simplicity’s sake, let’s begin with 4 characters: A,B,a,b. In our game, all 4 characters decide to run into each other at once.

First we will convert the 16×16 characters into binary, 0 for gray and 1 for yellow:

A:

**0000000000000000
0000000100000000
0000001110000000
0000001010000000
0000011011000000
0000010001000000
0000110001100000
0000100000100000
0000100000100000
0001111111110000
0001111111110000
0001000000010000
0011000000011000
0010000000001000
0110000000001100
0000000000000000**

A, Binary String: 0000000000000000000000010000000000000011100000000000001010000000000001101100000000000100010000000000110001100000000010000010000000001000001000000001111111110000000111111111000000010000000100000011000000011000001000000000100001100000000011000000000000000000

A, Binary-Decimal conversion: 95786086615602871731981918389383308042547593781186608

B:

**0000000000000000
0000000000000000
0001111111000000
0001111111100000
0001000000110000
0001000000010000
0001000000010000
0001000000110000
0001111111100000
0001111111110000
0001000000010000
0001000000010000
0001000000110000
0001111111100000
0001111111000000
0000000000000000**

B, Binary String: 0000000000000000000000000000000000011111110000000001111111100000000100000011000000010000000100000001000000010000000100000011000000011111111000000001111111110000000100000001000000010000000100000001000000110000000111111110000000011111110000000000000000000000

B, Binary-Decimal conversion: 46403387827017775033653233413204161160929512263696

a:

**0000000000000000
0000000000000000
0000000000000000
0000001111100000
0000011111110000
0000110000110000
0000000000010000
0000000111110000
0000011111010000
0000110000010000
0000110000110000
0000111001110000
0000011111011000
0000000000000000
0000000000000000
0000000000000000**

a, Binary String: 0000000000000000000000000000000000000000000000000000001111100000000001111111000000001100001100000000000000010000000000011111000000000111110100000000110000010000000011000011000000001110011100000000011111011000000000000000000000000000000000000000000000000000

a, Binary-Decimal conversion: 86418088698874722540000455600782178239016967

b:

**0000000000000000
0000100000000000
0000100000000000
0000100000000000
0000101111000000
0000111111100000
0000110000110000
0000100000010000
0000100000010000
0000100000010000
0000100000010000
0000110000110000
0000111011100000
0000101111000000
0000000000000000
0000000000000000**

b, Binary String: 0000000000000000000010000000000000001000000000000000100000000000000010111100000000001111111000000000110000110000000010000001000000001000000100000000100000010000000010000001000000001100001100000000111011100000000010111100000000000000000000000000000000000000

b, Binary-Decimal conversion: 766259462624453036391004127445265907255673543052767246

So, our Initial Population (POPinit) consists of the following four characters and their decimal representation:

1. (A) 95786086615602871731981918389383308042547593781186608

2. (B) 46403387827017775033653233413204161160929512263696

3. (a) 86418088698874722540000455600782178239016967

4. (b) 766259462624453036391004127445265907255673543052767246

***Define fitness of POPinit***

First, we establish the Total, the Best, the Worst and the Average based on their decimal representations:

Total: (A+B+a+b) 862091952714301014596894421608062875060164244585234517

Best: (b) 766259462624453036391004127445265907255673543052767246

Worst: (a) 86418088698874722540000455600782178239016967

Average: 23958122541618481117083899450474345137254323064508656.25

Based on these findings, we can calculate the chance of Reproduction / Survival for each character.

A: 0.1111088977388315456010566688830799217993208329796695901253… = 11% chance of reproducing

B: 0.0000538264945878643991068686448919016779835612586246604953… = <1% chance of reproducing

a: 0.0000000001002423099146058828565205588056220034311729841463397… = MUCH <1% chance of reproducing

b: 0.8888372756663382800852305796155076177170736023305327652329… = 88% chance of reproducing

*Perform Reproduction Function*

As you can tell from the fitness of each character, the character “b” has by far the best chance at survival, while character “A” is the only other letter with much of a chance at all. In the actual game, the reproduction function will decide who actually survives reproduction so it is impossible to say for sure, but based on these percentages we will go with three b’s and one A surviving to population generation 0.

So, the result of the reproduction function should look something like:

1. (b) 766259462624453036391004127445265907255673543052767246

2. (b) 766259462624453036391004127445265907255673543052767246

3. (b) 766259462624453036391004127445265907255673543052767246

4. (A) 95786086615602871731981918389383308042547593781186608

***Define fitness of gen0″**

Again, we determine the total, best, worst and average fitness of the new population, gen0:

Total, better: (b+b+b+A) 2394564474488961980904994300725181029809568222939488346

Best, same: (b) 766259462624453036391004127445265907255673543052767246

Worst, better: (A) 95786086615602871731981918389383308042547593781186608

Average, better: 598641118622240495226248575181295257452392055734872086.5

Note that the Total, Worst, and Average fitness of the population all improved as an expected result of natural selection. The Best fitness, meanwhile stays the same–and it has no chance for improvement until running the next stage of the GA…

***Perform genetic crossover operation on gen0***

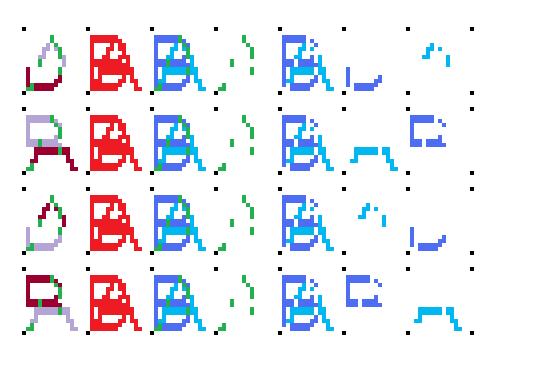

Start with 2 parents. Let’s use 3 & 4 as an example with an arbitrary crossover point (we’ll say 170 digits in–though this would actually be determined by the randomly generated genetic operation):

3. (b) 766259462624453036391004127445265907255673543052767246 =

00000000000000000000100000000000000010000000000000001000000000000000101111000000000011111110000000001100001100000000100000010000000010000001000000001000000100000000100000 | (crossover point) 01000000001100001100000000111011100000000010111100000000000000000000000000000000000000

4. (A) 957860866156028717319819183893833080425475937811868 =

00000000000000000000000100000000000000111000000000000010100000000000011011000000000001000100000000001100011000000000100000100000000010000010000000011111111100000001111111 | (crossover point) 11000000010000000100000011000000011000001000000000100001100000000011000000000000000000

From this crossover, we get 2 new offspring characters:

offspring1 (o1):

**0000000000000000
0000100000000000
0000100000000000
0000100000000000
0000101111000000
0000111111100000
0000110000110000
0000100000010000
0000100000010000
0000100000010000
0000100000110000
0001000000010000
0011000000011000
0010000000001000
0110000000001100
0000000000000000**

o1, Binary String: 0000000000000000000010000000000000001000000000000000100000000000000010111100000000001111111000000000110000110000000010000001000000001000000100000000100000010000000010000011000000010000000100000011000000011000001000000000100001100000000011000000000000000000

o1, Binary-Decimal conversion: 766259462624453036391004127445265907255673543589892144

offspring2 (o2):

**0000000000000000
0000000100000000
0000001110000000
0000001010000000
0000011011000000
0000010001000000
0000110001100000
0000100000100000
0000100000100000
0001111111110000
0001111111010000
0000110000110000
0000111011100000
0000101111000000
0000000000000000
0000000000000000**

o2, Binary String: 0000000000000000000000010000000000000011100000000000001010000000000001101100000000000100010000000000110001100000000010000010000000001000001000000001111111110000000111111101000000001100001100000000111011100000000010111100000000000000000000000000000000000000

o2, Binary-Decimal conversion: 95786086615602871731981918389383308042547593244061710

So gen1 looks like:

1,2 are the same as before; 3,4 are the offspring of crossover:

1. (b) 766259462624453036391004127445265907255673543052767246

2. (b) 766259462624453036391004127445265907255673543052767246

3. (o1) 766259462624453036391004127445265907255673543589892144

4. (o2) 95786086615602871731981918389383308042547593244061710

***Convert gen1 offspring to valid characters***

Now, 3 and 4 are new shapes that do not correspond with any of our 4 letters. The BBC (Bitmap-to-Binary Converter) will be used to “read” these bitmaps and find the closest letter in the space of possible letters which we will define. So, the offspring will turn into something like “h” and “8″, because those are the closest possibilities within the alphabet.

I was going to include a range in decimal numbers and apply that to the nearest alphabet character within that range, but I don’t think that will work because more often than not the offspring will just end up reverting to one of the two characters from which it was created. From this perspective, the BBC may be a very useful portion of the AS program.

So, o1 become “h” and o2 becomes “8″, converting gen1 characters to:

o1=h:

**0000000000000000
0000110000000000
0000110000000000
0000110000000000
0000110111000000
0000111111100000
0000111000110000
0000110000110000
0000110000110000
0000110000110000
0000110000110000
0000110000110000
0000110000110000
0000110000110000
0000000000000000
0000000000000000**

h, Binary String: 0000000000000000000011000000000000001100000000000000110000000000000011011100000000001111111000000000111000110000000011000011000000001100001100000000110000110000000011000011000000001100001100000000110000110000000011000011000000000000000000000000000000000000

h, Binary-Decimal conversion: 1149389193936678235951120191876555791760811195370319884

o2=8:

**0000001111000000
0000011111100000
0000110000110000
0000100000010000
0000100000010000
0000110000110000
0000011111000000
0000011111100000
0000110000110000
0000100000010000
0000100000010000
0000100000010000
0000110000110000
0000011111100000
0000001111000000
0000000000000000**

8, Binary String: 0000001111000000000001111110000000001100001100000000100000010000000010000001000000001100001100000000011111000000000001111110000000001100001100000000100000010000000010000001000000001000000100000000110000110000000001111110000000000011110000000000000000000000

8, Binary-Decimal conversion: 23539885800661303801528815919744719668529798326595472592908

So the gen1 now looks like:

1. (b) 766259462624453036391004127445265907255673543052767246

2. (b) 766259462624453036391004127445265907255673543052767246

3. (h) 1149389193936678235951120191876555791760811195370319884

4. (8) 23539885800661303801528815919744719668529798326595472592908

From which we evaluate the fitness again (“8″ clearly will be the new dominate gene) and so on, generation after generation…

***Conclusion***

This is the basic gist of Alphabet Soup by GA. The final aspect of using GA is to incorporate mutations: the random changing of various pixels within the letters, which will obviously introduce the same effect of crossover in adding to the population of letters. Mutations will only be applied to a small portion of the entire population in each generation, just like in nature. With only 4 characters to choose from, let’s say there are no mutations in this particular generation. That gives us the current pool of characters, including the initial population, gen0 and the current generation (gen1):

[POPinit][gen0] [gen1]

[A,B,a,b][b,b,b,A][b,b,h,8]

So, we have 6 “b”s, 2 “A”s, 1 “a”, 1 “h”, 1 “B” and 1 “8″ floating around. Granted this is an example run, but it plays out pretty realistically: note that the dominate gene (b) is taking up quite a bit of the population, while a and B have not grown at all in population. “h” and “8″ are the new kids on the block, and they will have a direct impact on the future generations, again based on their fitness for reproduction and crossover–with a little bit of mutation thrown in here and there.

One of the core questions remains: How do we make the shapes of the characters matter? In other words, how do we specify the importance of various pixels? This, I believe, can also be accomplished through the BBC, and I have some ideas for that. But more on that later.
